| Type Number | Main Difference |
| M104Ax | IIC |
| M104Bx | UART, 9bits |
| M104BPCx | UART, 8bits |
| M104Cx | IIC |
| M104Dx | UART, 9bits |
| M104DPCx | UART, 8 bits |
| M104Wx | Wiegand26/34 |
>>Features

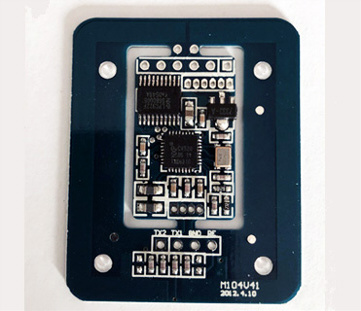

- M104V41 will be phase out,and will be repalced by M104V51 or other serials
- Frequency: 13.56MHz
- Embeded NXP transceive IC as RF base sation
- Compliant with the standard of ISO14443 TYPE A/Mifare/ISO7816
- Completed operation command set,and user needn't to care for the complex control ,can implement all the operation for the IC cards.
- Integrated with antenna
- Dimension include antenna:43.5X35.5mm
- Communication interface:IIC or UART
- Embeded with watchdog
- Source code samples for C51
- Software can be customized according to the customer requirements
- Application for the fields of transport, access door control, smart meters, login in or login out checker, industrial,etc
>>Optional antennas(Just user M104x Core module)
| Type Number | Dimension | Operation Distance |
| T182 | 32.5X17.5mm | 20~30mm |
|
T186 | Outside diameter:31mm | 20~30mm |
| T101 | 65X59mm | 50~70mm |
| T102 | 41X42mm | 40~60mm |
| T105 | 128X142mm | 80~100mm |
| T107 | 192X155mm | 90~120mm |
| T120 | 63X35mm | 30~40mm |
>>Electrical Characteristics
- Frequency: 13.56MHz
- Operation distance:40~60mm(Testing base on standard S50)
- Power Supply:DC3.3V/DC5V
- Current:Standard modules:3.3V/35mA(High Power Modules(model+"B"):3.3V/90mA)
- Temperature range: -10~+70℃
- Demision:43.5X35.5mm(Intergrated with antenna)
- Pin to pin distance:2.54mm
>>Main Difference
| Type Number | Main Difference | Support Tags |
| M104A | IIC DC3.3V/DC5V | Mifare S50,S70,FM11RF08 and compatible cards |
| M104B | UART(9bits）DC3.3V/DC5V | Mifare S50,S70,FM11RF08 and compatible cards |
| M104C | IIC DC3.3V/DC5V | Mifare S50,S70,FM11RF08,FM1208,FM1204, ,PSAM9600,PSAM38400 and compatible cards |
| M104D | UART(9bits）DC3.3V/DC5V | Mifare S50,S70,FM11RF08,FM1208,FM1204, ,PSAM9600,PSAM38400 and compatible cards |
| M104BPC | UART(8bits）DC3.3V/DC5V | Mifare S50,S70,FM11RF08 and compatible cards |
| M104DPC | UART(8bits）DC3.3V/DC5V | Mifare S50,S70,FM11RF08,FM1208,FM1204, ,PSAM9600,PSAM38400 and compatible cards |
| M104W | Wiegand26/Wiegand34 DC3.3V/DC5V | Mifare S50,S70,FM11RF08 and compatible cards |
